Butterfly valves
Alfa Laval Butterfly Valves: Versatile, Efficient, and Reliable
Alfa Laval butterfly valves are high-performance shut-off valves designed for hygienic and high-purity stainless steel pipe systems. With a substantial opening area and low flow resistance, they enable easy passage of low- to medium-viscosity liquids or liquids containing solids, boosting productivity while reducing energy consumption. Perfectly suited for the food, beverage, home-personal care, biotech, and pharmaceutical industries, these valves deliver reliable, cost-effective performance.
Flexible and Modular Butterfly Valve Range
- Minimized flow obstruction ensures smooth passage of process fluids, including particle-laden liquids.
- Low flow resistance reduces energy use when handling liquids of varying viscosities.
- Fully modular, interchangeable design simplifies installation, operation, and maintenance.
- Fast, economical maintenance requires only wear part replacement, with special flange versions enabling quick valve body removal without dismantling piping.
- Optional intelligent sensing and control units with auto setup functions ensure precise valve control.

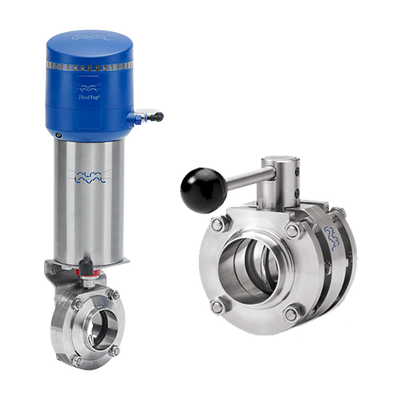

Available in standard, hygienic, high-purity, ATEX, and special flange versions, Alfa Laval butterfly valves are ideal for manual or automated operation. Choose manual handles with optional position indicators or pneumatic actuators combined with intelligent valve control units to optimize performance. Easy to configure and upgrade, these valves enhance plant productivity and product quality across all applications.
Alfa Laval LKB Butterfly Valve
The Alfa Laval LKB Butterfly Valve offers a range of benefits for efficient flow control in hygienic applications:
- Reliable and cost-effective: A dependable butterfly valve designed for flow control in piping systems across various hygienic applications, providing a cost-effective solution.
- High-performance and Low Flow Resistance: With its substantial opening area and low flow resistance, this valve ensures high Kv value and low pressure drop, optimizing system performance.
- Maintenance-friendly: The LKB Butterfly Valve is designed for easy maintenance, minimizing service downtime, especially for the flange version.
- Space-saving and economical: Its space-saving and economical construction enables inline mounting in piping systems, saving valuable space and costs.
Choose between manual or automatic operation, using either a standard handle or pneumatic actuator. Widely used in the dairy, food, beverage, brewery, and other industries, the Alfa Laval LKB Butterfly Valve delivers reliable and efficient performance in hygienic applications.
Contact us
Alfa Laval LKB UltraPure Butterfly Valve
The Alfa Laval LKB UltraPure Butterfly Valve offers a range of benefits for efficient flow control in hygienic applications:
- Efficiently routes high-purity fluids without compromising product quality.
- Low restriction flow due to high Kv values for smooth fluid passage.
- Simplified validation procedures with the Alfa Laval Q-doc documentation package.
- Effortless maintenance with only one wear part replacement at scheduled intervals.
Specifically designed for critical applications in the biotech and pharmaceutical industries, offering high hygiene standards, superior flow control, and easy maintenance.
Contact us
Alfa Laval LKB-F Butterfly Valve
The Alfa Laval LKB-F Butterfly Valve offers a range of benefits for efficient flow control in hygienic applications:
- Reliable flow regulation for low- to medium-viscosity processing fluids and high particle concentrations.
- Effortless installation and alignment with flanges on both valve body ends.
- High-performance quarter-turn shutoff valve, enhancing productivity.
- Economical and straightforward maintenance with scheduled wear part replacement, no special tools or piping system dismantling needed.
Choose the LKB-F raises product quality and yield while reducing energy, water and cleaning media costs, especially in combination with the Alfa Laval ThinkTop V50 and V70 pulse seat clean function.
Contact us
Alfa Laval Unique Control LKB Butterfly Valve
The Alfa Laval Unique Control LKB Butterfly Valve offers a range of benefits for efficient flow control in hygienic applications:
- Improved flow control and enhanced process hygiene with Alfa Laval Unique Control LKB.
- Maintenance-free actuator integrated with an intelligent control unit.
- Efficiently controls the flow of processing fluids in applications with stringent hygiene requirements.
- Easy setup enables quick upgrades of manual or pneumatic shut-off valves, five times faster than conventional solutions. Suitable for various industries, including dairy, food, beverage, and brewery.
How Do Alfa Laval Butterfly Valves Work?
Alfa Laval butterfly valves operate either manually or automatically, offering flexibility and precision in hygienic processes.
Automatic Operation
A pneumatic actuator, available in normally closed (NC), normally open (NO), or air/air activated (A/A) versions, converts axial piston motion into a 90° shaft rotation. As the valve disc contacts the seal ring, the actuator torque secures proper valve closure, ensuring reliable performance.
Manual Operation
A handle mechanically locks the valve in open or closed positions. Handles are available in various configurations, including two-position, four-position, regulating 90°, and multi-position. Optional indication units provide feedback on valve position (open/closed) for enhanced control.
For superior flow control, hygiene, and reliability, Alfa Laval butterfly valves can be equipped with built-in actuators or intelligent valve control units, enabling smart automation for optimal process efficiency.
