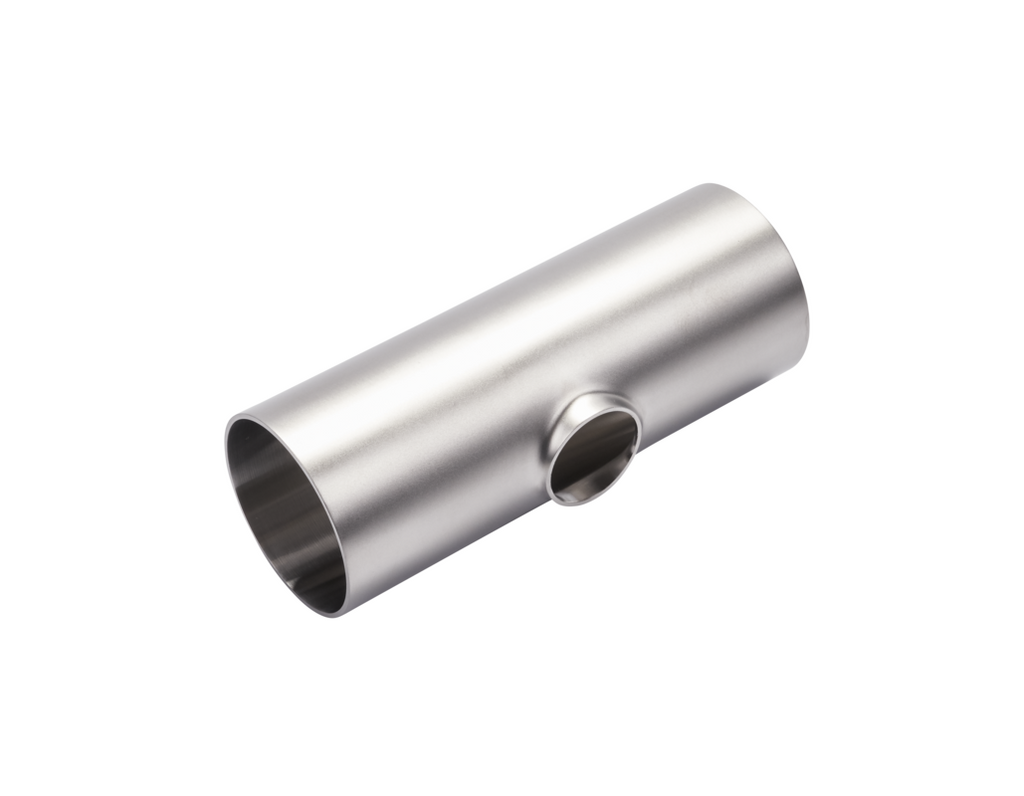

TEE RTK DN200/80 HSF2 1.4404

Manufacturer:Alfa Laval
Item number: 9615227969
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:4-5 days
  • Range: Tees
  • Product Model: DIN EN 10357-A Reducing Tees Short EN 10374-A
  • Size: DN200
  • Material: DN80
  • Finish: 1.4404 (316L)
  • Connection type: HSF2 (ID=0.8/OD=1.6)
  • Standard: Weld ends
  • Design: DIN 11852 EN 10374-A
  • Item Weight: 3.7
  • Country of origin: China
Price:
Login to view price

Documentation

L1 (mm): 300
L2 (mm): 108
OD/ID x t: 204/200 x 2
OD1/ID1 x t1: 204/200 x 2
OD2/ID2 x t2: 85/81 x 2
OD2: 85
